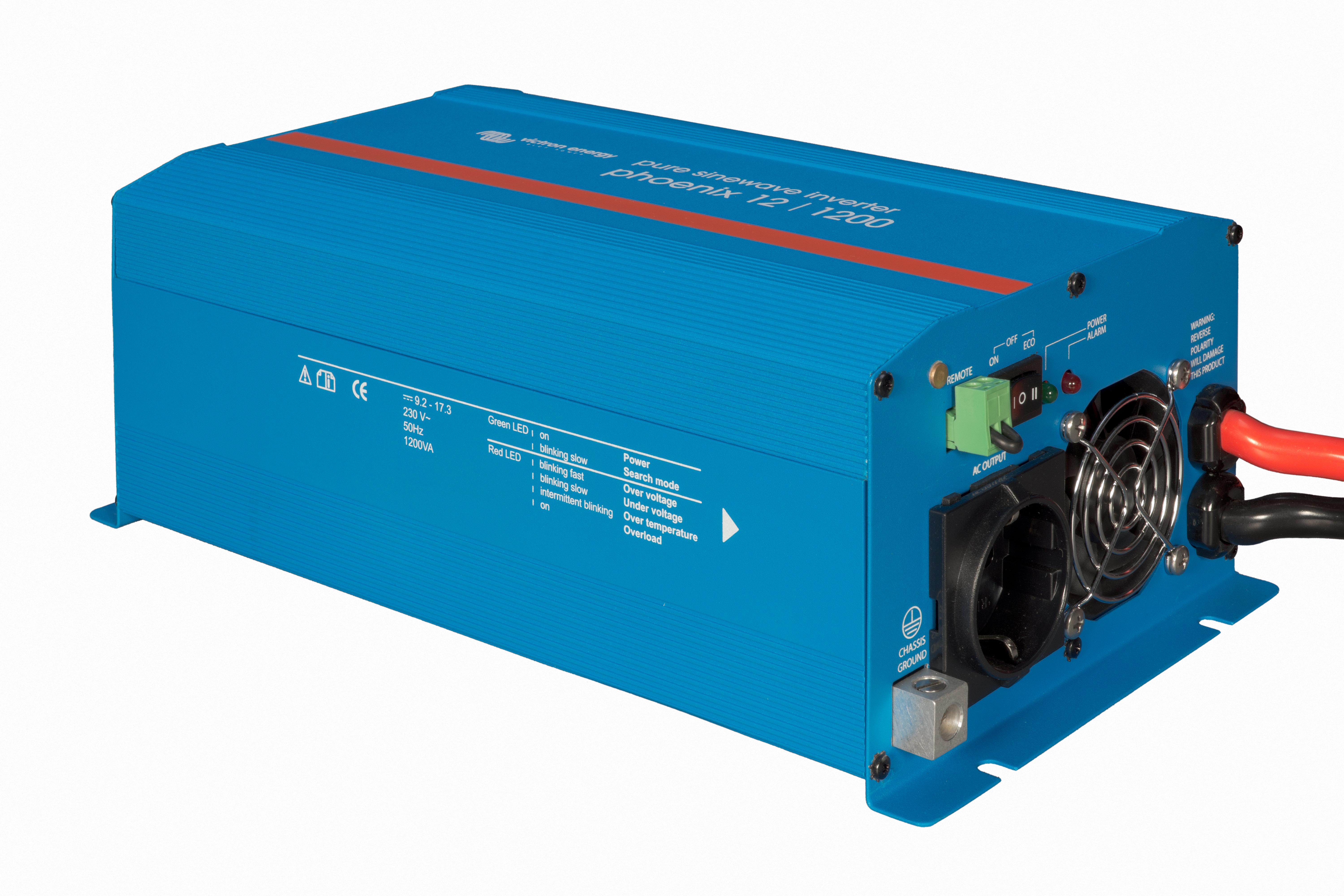

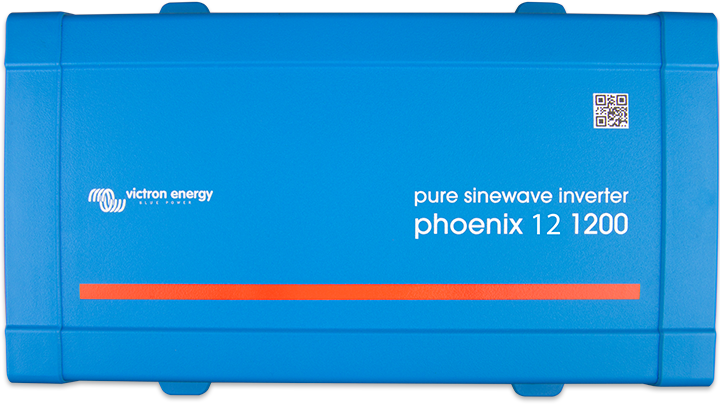

1200VA Victron Phoenix Inverter UK (12/24/48V) with VE.Direct

The Victron Phoenix 12/1200, 24/1200 and 48/1200 Inverters convert battery voltage (12V, 24V, 48V DC) to mains voltage (230V AC) to run appliances.

Now with a VE.Direct port these inverters can be connected to:

A computer (VE.Direct to USB interface cable needed)
Apple and Android smartphones, tablets, macbooks and other devices (VE.Direct Bluetooth Smart dongle needed)

Configurable options:

Monitoring:

Your item has been added to your basket

£338.49 ex. VAT

Technical Specification

PHOENIX INVERTER MODEL	12/800	12/1200
	24/800	24/1200
	48/800	48/1200
Cont. AC power at 25 °C (VA) (3)	800	1200
Cont. power at 25 °C / 40 °C (W)	700 / 650	1000 / 900
Peak power (W)	1600	2400
Low battery shut down (V DC)	9,2 / 18,4 / 36,8
Low battery auto recovery (V DC)	12,5 / 25 / 50
Max. efficiency (%)	91 / 93 / 94	92 / 94 / 94
Zero-load power (W)	6 / 5 / 4	6 / 5 / 6
Zero-load power in search mode	2	2
Standard AC outlets	230V: IEC-320 (IEC-320 plug included), CEE 7/4 (Schuko) 120V: Nema 5-15R
Other outlets (at request)	BS 1363 (United Kingdom) AN/NZS 3112 (Australia, New Zealand)
Protection category	IP20
Weight (kg / lbs)	6,5 / 14.3	8,5 / 18.7
Dimensions (hxwxd in mm)	108x165x305	108x165x305
ACCESSORIES
Remote control panel	Optional	n.a.
Remote on-off switch	RJ12 plug	Two pole connector
Automatic transfer switch		Filax

*All technical specifications and images are correct at the time of publication, but are subject to change without notice.
